★Mcintosh(매킨토시)★ C40 프리앰프 중고인수품판매!!!

★Mcintosh(매킨토시)★ C40 프리앰프 중고인수품판매!!!

www.kingsound.co.kr

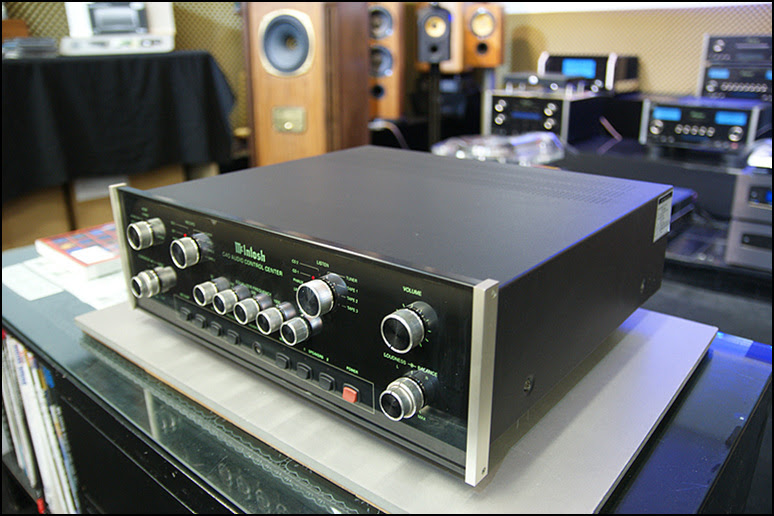

매킨토시 C40 프리앰프 중고인수품 입니다.
앞창에 약간의 기스있습니다. 작동에는 전혀 문제없는 상태입니다.
많은 관심 부탁드립니다.












C40 프리

Form	Audio control center
Frequency characteristic	20Hz - 20000Hz, and +0 -0.5 dB
Output power	2.5V (a main, switchpoints 1 and 2, balance output)
Output load impedance	600ohms (a main, switchpoints 1 and 2, balance output)
Maximum output voltage	8V (a main, switchpoints 1 and 2, a balance output, 20Hz - 20000Hz)
THD	A maximum of 0.002% (at the time of an Output power 20Hz - 20000Hz)
Input sensitivity	Phono: 2.5mV (at the time of 2.5V Output power) (0.5mV IHF) High-level: 250mV (at the time of 2.5V Output power) (50mV IHF)
SN ratio (A-network)	Phono: 90dB (as opposed to an input of 10mV or less) (84dB IHF) High-level: 105dB (at the time of below an Output power) (95dB IHF)
The maximum input signal	Phono:90mV High-level: 10V
Input impedance	Phono: 47kohm, 65pF High-level: 22kohm
Voltage gain (gain)	Phono->Tape: 40dB High-level ->Tape: 0dB Phono->Main: 60dB High-level ->Main: 20dB
Equalizer control	At variable, 30Hz, 150Hz, 500Hz, 1500Hz, and a 10000Hz hub an a maximum of 12dB Booth -- or a cut
Output	20W+20W (They are per channel and the minimum sine-wave succession mean-value output to an 8-ohm load intensity.) In summer, they are 12.6V and 20Hz - 20000Hz of Output-power bands to an 8-ohm load intensity at output RMS.
THD	A maximum of 0.005% (by 250mW - arbitrary power to an Output power)
Frequency characteristic	20Hz - 20000Hz, and +0 -0.5 dB
Input sensitivity/impedance	750mV / 27kohm (at the time of an Output power)
SN ratio (A-network)	100dB (at the time of below an Output power) (87dB IHF)
AC-power-source plug socket	Power-source interlock: Four pieces Power-source un-interlocking.: One piece
Power source	AC100V, 50Hz/60Hz
Power consumption	25W-58W
Dimensions	Width 445x height 137x depth of 432mm (termination included) Panel control unit path clearance 38mm
Weight	12kg
